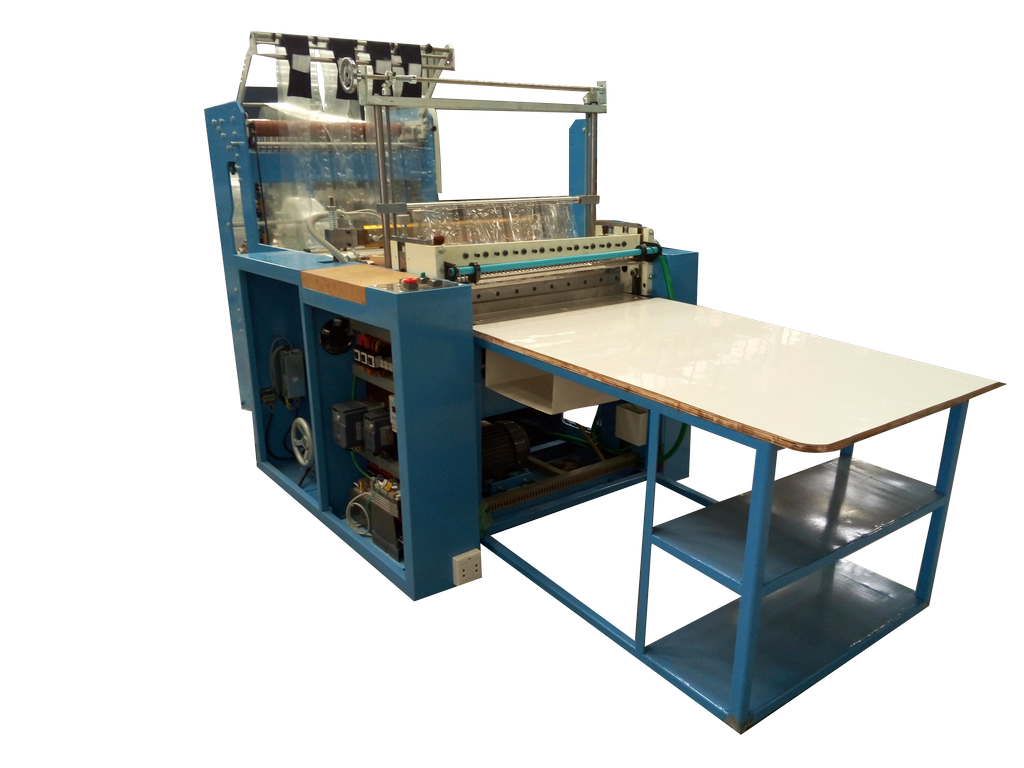

Single Desk
MODEL | CS 28 | CS 32 |
MAX CUTTING SPEED | 150 CUTS/MIN | 150 CUTS/MIN |
CUTTING LENGTH (MAX) | 32 IN | 32 IN |
MAIN MOTOR | 2 HP + INVERTER | 2 HP + INVERTER |
BAG FEEDING | MOTOR + INVERTER | MOTOR + INVERTER |
FEED SYSTEM | SERVO + TOUCH SCREEN(SIEMENS) | SERVO + TOUCH SCREEN(SIEMENS) |
TEMPERATURE CONTROL | DIGITAL (PID) | DIGITAL (PID) |
ROLLER PROTECTION | INCLUDED | INCLUDED |
TEMPERATURE PROTECTION | INCLUDED | INCLUDED |
HEATER | 2 KW | 2 KW |
DIMENSION (W x L x H) | 950 mm x 3,000 mm x 1,800 mm | 1,050 mm. x 3,000 mm. x 1,800 mm. |
WEIGHT (APPROX) | 800 KG. |
